GN100 1KW 12VDC 60A MPPT
GN100 1KW 12VDC 60A MPPT
GN100 1KW 12VDC 60A MPPT
GN100 1KW 12VDC 60A MPPT
GN100 1KW 12VDC 60A MPPT

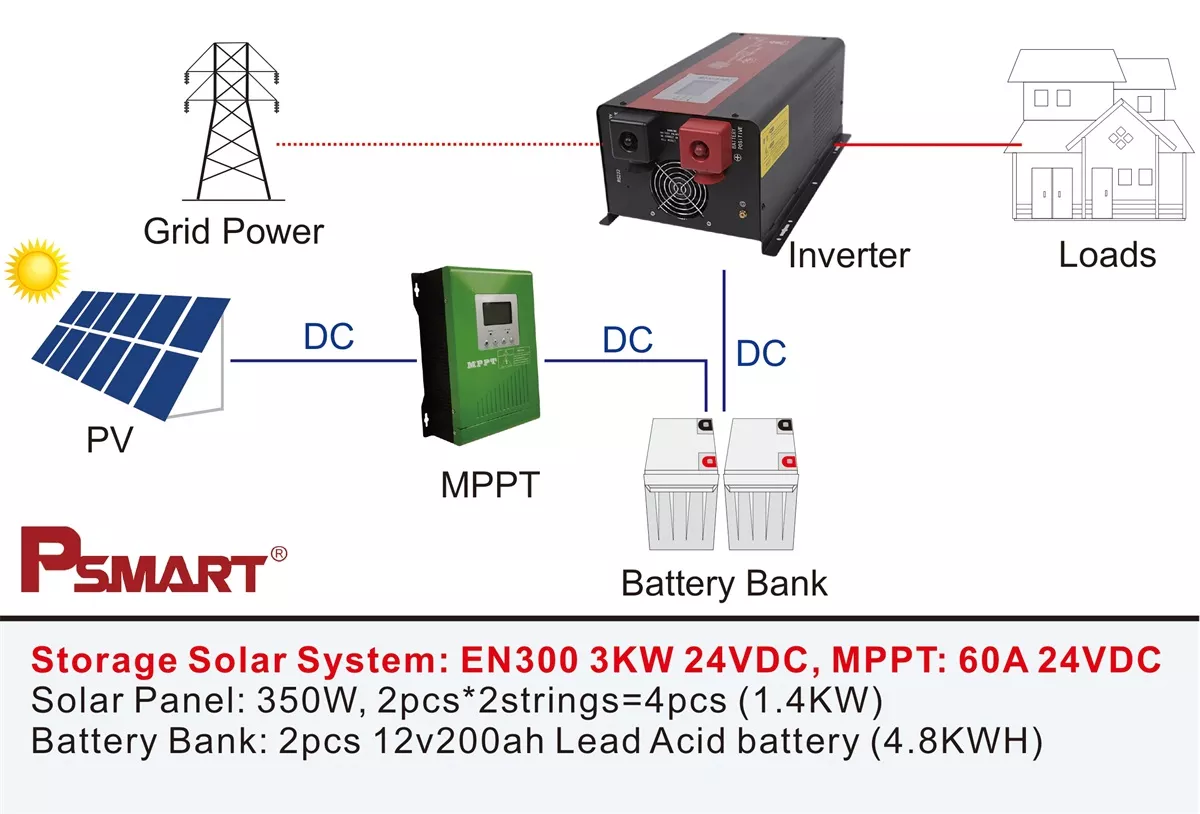

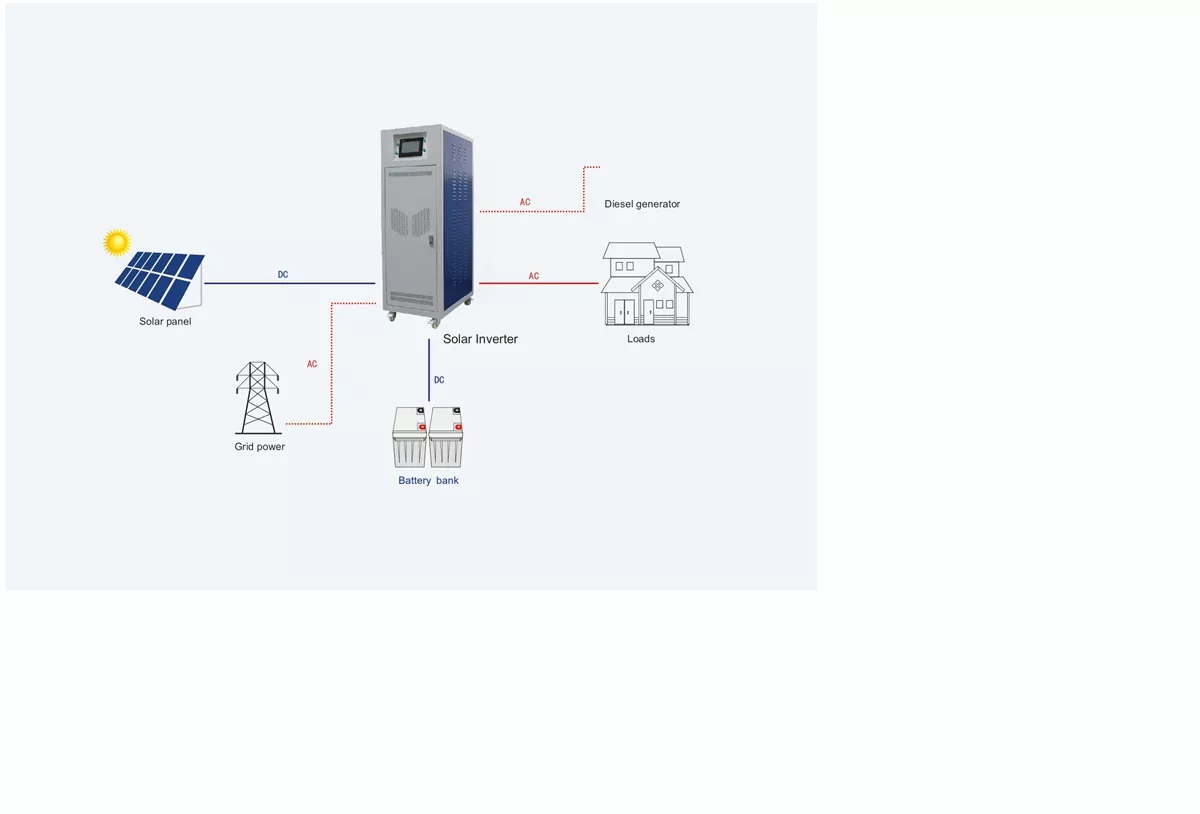

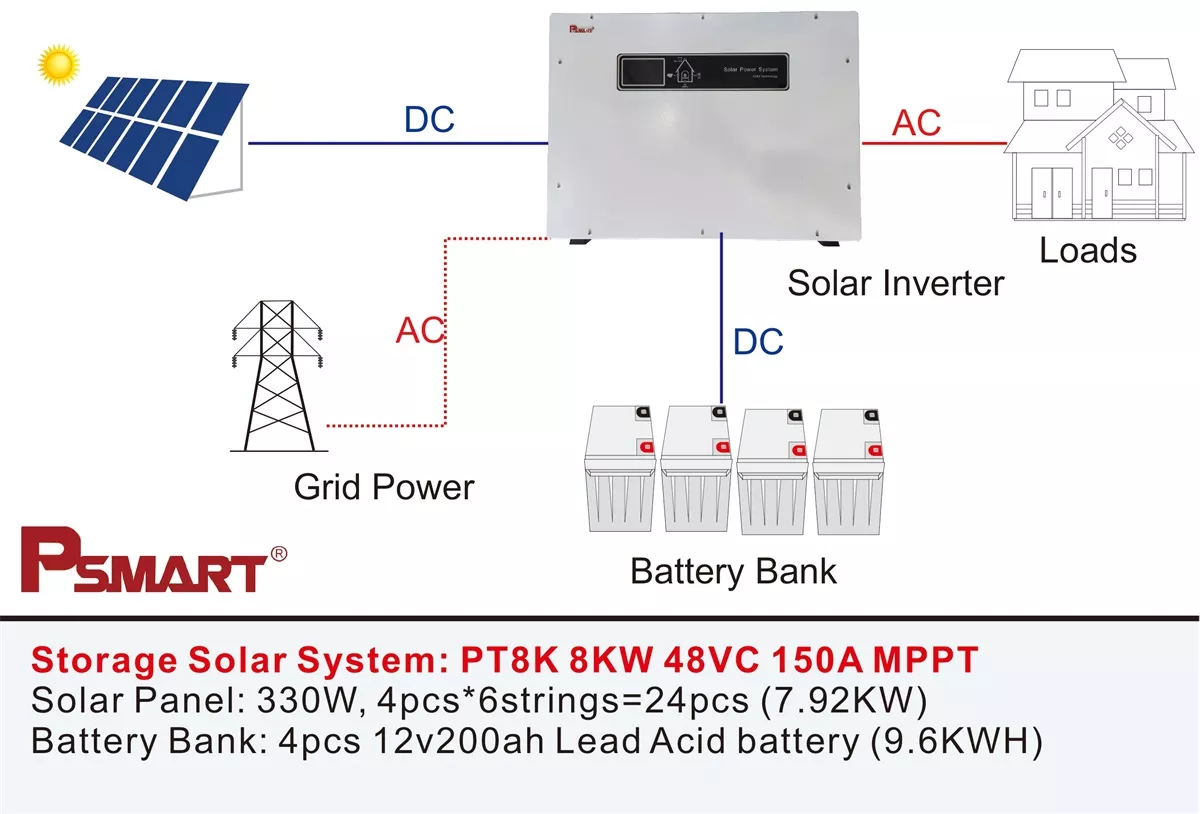

Solar Inverter System: A Versatile Energy Management Strategy


According to your needs for your country, we'll provide suitable solar inverter system solutions.


Just CONTACT US!!


Or you can look at the solutions below for reference:

Request A Quote
Product Applications
Product Spec
PDF Download

solar inverter system_page-0001.webp


solar inverter system_page-0002.webp


solar inverter system_page-0003.webp

solar inverter system_page-0004.webp


solar inverter system_page-0005.webp





System Configuration Example:


S.N
Component Name
Specification
Quantity
1
Hybrid Inverter
5000W, 48V, 50A
1 Unit
2
PV Panel
Mono 300W
8PCS
3
PV Panel Bracket
Steel
1 Unit
4
Lead-acid battery
12V, 150AH
8 Unit
5
MC4 connector
Triple connector
3 Pair
6
DC breaker, cable
C32 breaker 1PCE
2Lines*5M cable
Hybrid inverter technical data
Model
A50V48-50
Rated Power
5000W
Battery Voltage
48V
Solar charge controller
MPPT 48V 50A (Configurable)
PV max input voltage
≤180vdc
AC output
220v±3%, 50Hz±1Hz
Output wave form
Pure sinewave
Conversion efficiency
85% - 90%
Overload protection
Yes
Low voltage protection
Yes
Overheat protection
Yes
Short-circuit protection
Yes
Battery status display
Yes


system configuration.pdf
